UR5e Robotic Arm
- Sku: UR5e
- Vendor: Universal Robots
Have a question?

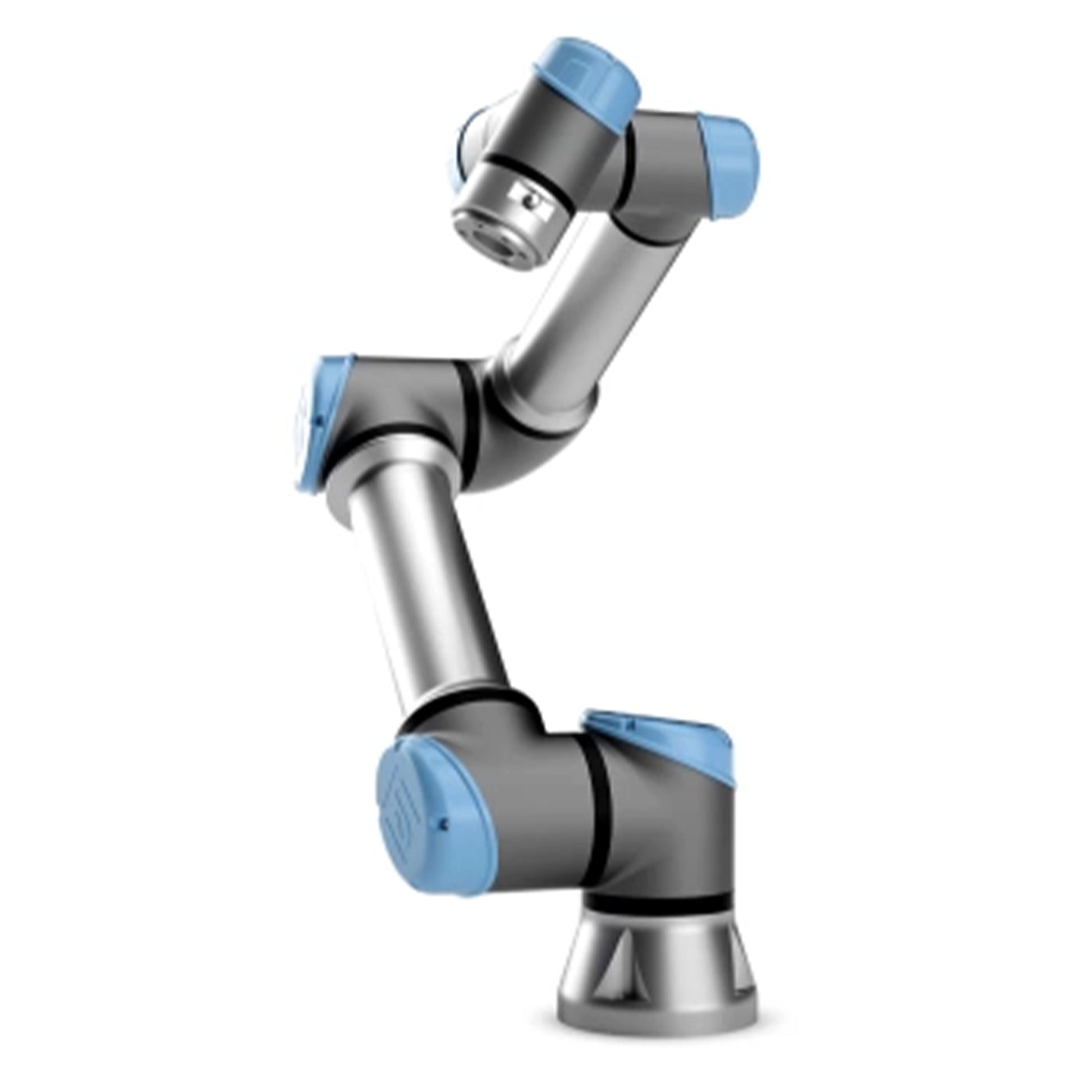

UR5e Robotic Arm
THE UR5e - A FLEXIBLE COLLABORATIVE ROBOT ARM
Built with the future in mind, the UR5e is designed to grow in capability alongside your business, a spring board to improved product quality and productivity, so you will always be able to stay ahead of competition. Equipped with intuitive programming, versatile use and an almost endless list of opportunities for add-ons, the UR5e is able to complement production regardless of your industry, company size or product nature.
The UR5e strikes the perfect balance between size and power.
THE UR5e PUTS EVERYTHING WITHIN REACH.
The lightweight, highly flexible, and collaborative UR5e industrial robot arm lets you automate repetitive and dangerous tasks with payloads of up to 5 kg.
-
The UR5e flexible robot is ideal to optimize low-weight collaborative processes, such as picking, placing, and testing. With a working radius of up to 33.5 ins (850mm), the UR5e collaborative robot puts everything within reach, freeing up your employees’ time to add value to other stages of production.
-
The UR5e robot from Universal Robots is easy to program, offers fast set-up, is collaborative and safe, and like our other collaborative robots, offers one of the fastest payback times in the industry.
EASY PROGRAMMING
Patented technology lets operators with no programming experience quickly set up and operate our cobots with intuitive, 3D visualization. Simply move the robot arm to desired waypoints or touch the arrow keys on the easy-to-use touchscreen tablet.
FAST SET-UP
Universal Robots has revolutionized cobot set-up, reducing typical robotic deployment measured in weeks to a matter of hours. The average set-up time reported by our customers is only half a day. The out-of-box experience for an untrained operator to unpack the cobot, mount it, and program the first simple task is typically less than an hour.
FLEXIBLE DEPLOYMENT
Don’t be limited by dedicated robotics. Universal Robots are lightweight, space-saving, and easy to re-deploy to multiple applications without changing your production layout. Moving the cobot to new processes is fast and easy, giving you the agility to automate almost any manual task, including those with small batches or fast change-overs. The cobot is able to re-use programs for recurrent tasks.
COLLABORATIVE AND SAFE
Now you can replace human operators in dirty, dangerous, and dull jobs to reduce repetitive strain and accidental injuries. Eighty percent of the thousands of UR robots worldwide operate with no safety guarding (after risk assessment), right beside human operators. The safety system of our robots is approved and certified by TÜV (The German Technical Inspection Association).
Compare Our Robots
UR3e | UR5e | UR10e | UR16e | UR20 | |
| 500 mm / 19.7 ins | 850 mm / 33.5 ins | 1300 mm / 51.2 ins | 900 mm / 35.4 ins | 1750 mm / 68.9 ins |
| 3 kg / 6.6lbs | 5 kg / 11 lbs | 12.5 kg / 27.55 lbs | 16 kg / 35.3 lbs | 20 kg / 44.1 lbs |
| Ø 128 mm | Ø 149 mm | Ø 190 mm | Ø 190 mm | Ø 245 mm |
| 11.2 kg / 24.7 lbs | 20.6 kg / 45.4 lbs | 33.5 kg / 73.9 lbs | 33.1 kg / 73 lbs | 64 kg / 141.1 lbs |
