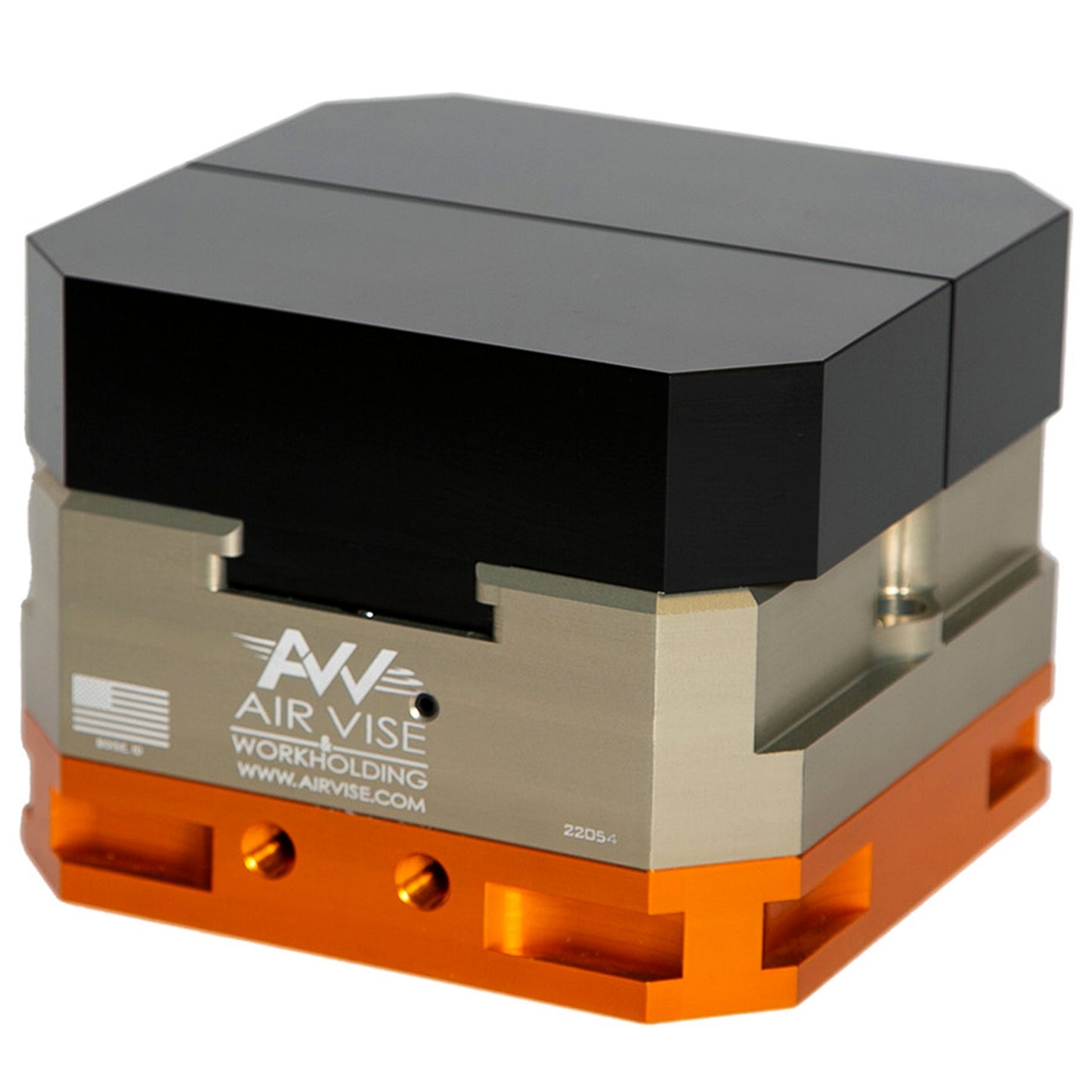

Table Vise with 6" Jaws

The Table Vise is ideal for shops that want to maximize efficiency, run slightly larger parts and change ops frequently.

The Table Vise is ideal for maximizing efficiency, run smaller parts and change operations frequently. A unique T-Hook allows the jaws to disengage in an open position for rapid changeout. Our one touch open and close feature provides consistent and repeatability clamping. The small footprint supports mounting multiple vises on a single table. The 6" jaws allow for slightly larger parts to be run or allow multiple parts to be done at once. Ease of integration without the need to modify existing fixturing or labor-intensive set ups. The pneumatic AV&W Table Vise offers substantial time and cost savings while increasing consistency.

• Footprint - 5.980 in x 5.980 in
• Jaw Width - 6.00 in
• Maximum Operating Pressure - 200 psi
• Throat Depth – 15/16 in

Workholding hardware, fixture keys, jaw shim and fittings included

Features

• ReadyQuick 6" Wide Self-Centering 7075 T-6 Hard Anodized Soft Jaws
• Adjustable, Consistent, Repeatable O/D and I/D Clamping Force
• Easy Integration with Robotic Command Controls or M-Codes Operation
• Small Footprint Optimized for Chip Evacuation
• Tremendous Value Adding to the Bottom Line by Saving Time and Labor
• Made in the U.S.A.
