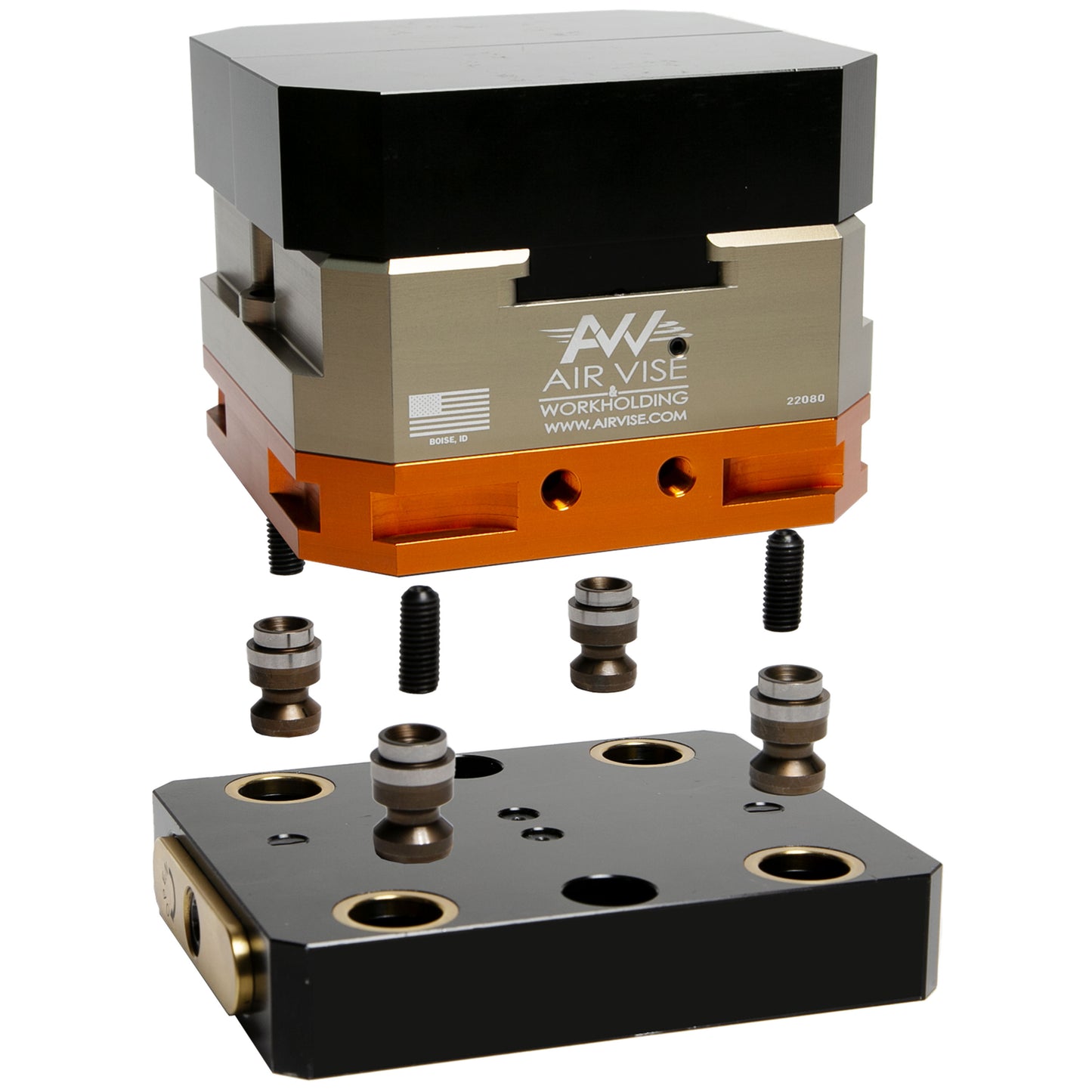

Table Vise 96 mm Zero Point Base

The Table Vise is ideal for shops that want to maximize efficiency, run slightly larger parts and change ops frequently.

The Table Vise is ideal for maximizing efficiency, run smaller parts and change operations frequently. A unique T-Hook allows the jaws to disengage in an open position for rapid changeout. Our one touch open and close feature provides consistent and repeatability clamping.

The vise base comes ready to receive standard pull studs for zero point systems and is designed to fit Lang, Jergens, and 5th axis 96mm base plate. Add an Air Vise for easy automation onto an already tested system!

• Footprint - 5.980 in x 5.980 in
• Jaw Width - 6.00 in
• Maximum Operating Pressure - 200 psi
• Throat Depth – 15/16 in

Workholding hardware, fixture keys, jaw shim and fittings included

Features

• 96mm Zero Point Base Adaptable
• ReadyQuick 6" Wide Self-Centering 7075 T-6 Hard Anodized Soft Jaws
• Adjustable, Consistent, Repeatable O/D and I/D Clamping Force
• Easy Integration with Robotic Command Controls or M-Codes Operation
• Small Footprint Optimized for Chip Evacuation
• Made in the U.S.A.
