Kinematic Coupling Set

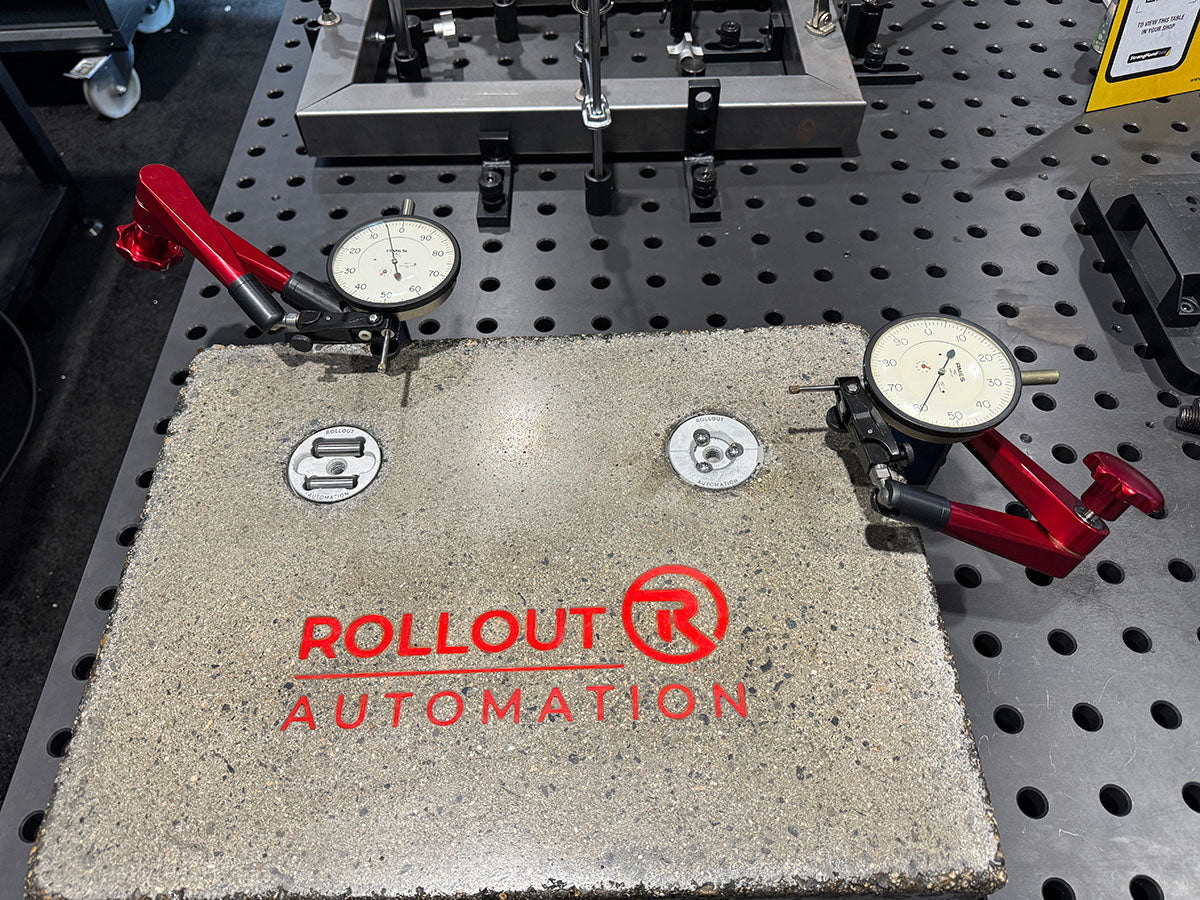

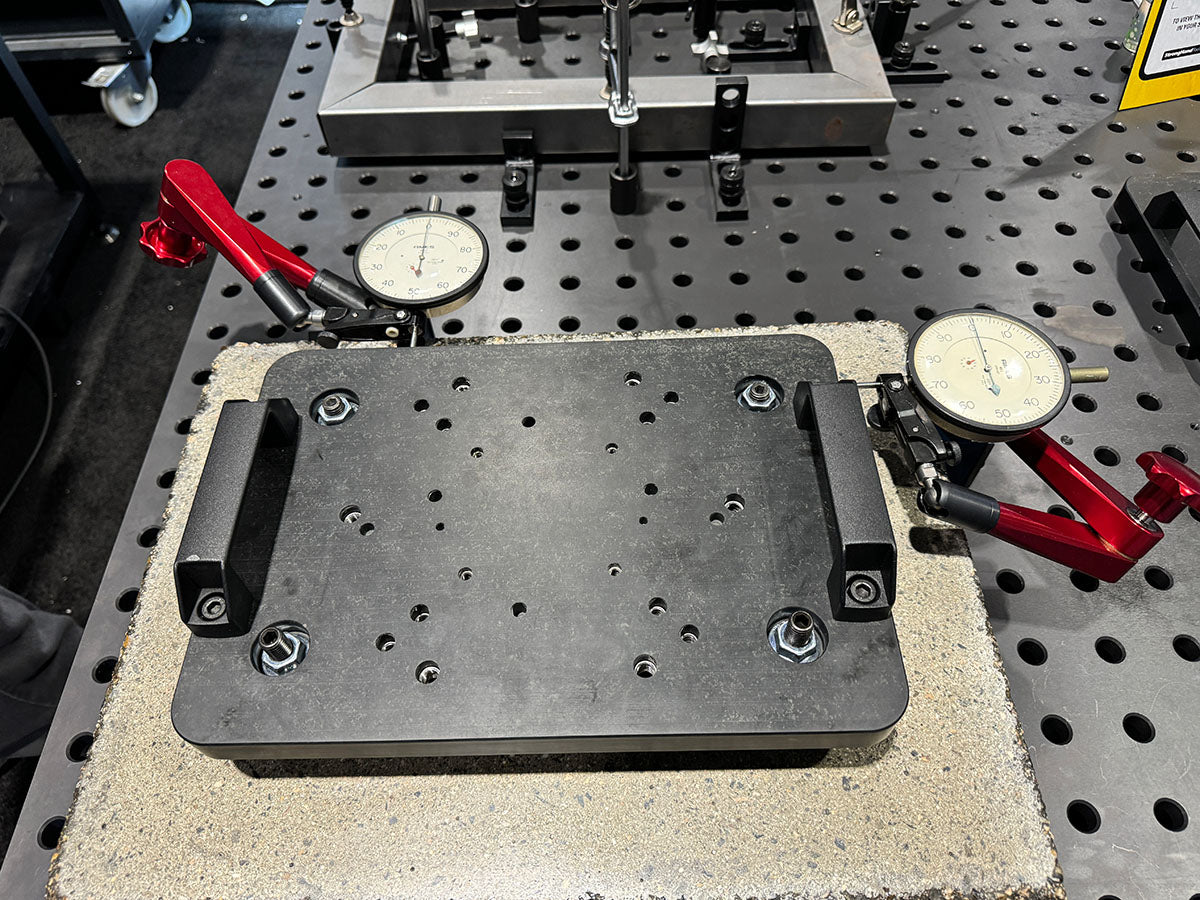

These kinematic couplers enable repeatable location of tables or platforms with 0.001" accuracy.

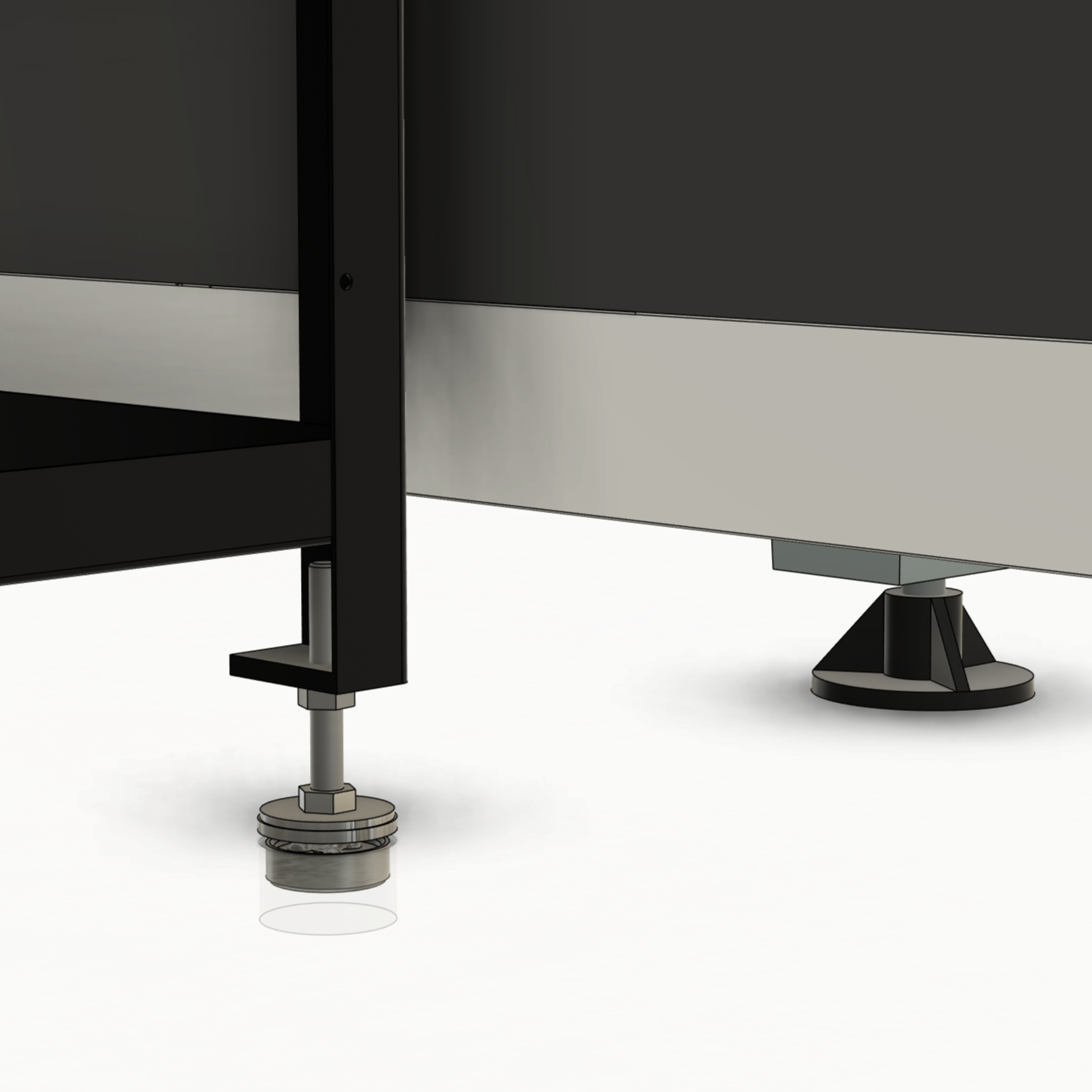

They replace traditional leveling feet with a flush-to-floor repeatable kinematic coupling. This removes one more variable in your production process when moving your cobot or cobot workstation from one location to another.

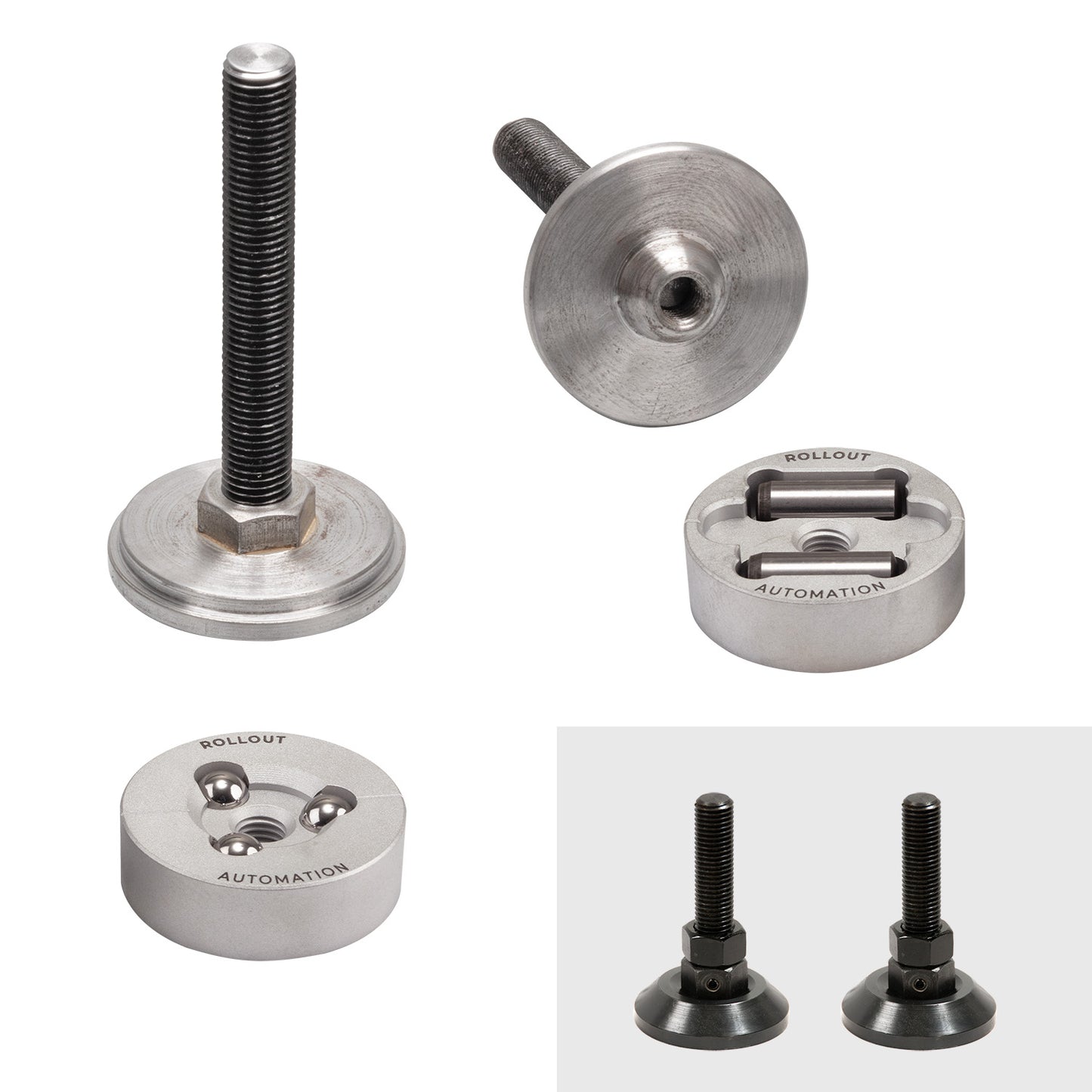

The floor mounted disc and male coupler each feature an M12 threaded hole.

Male coupler comes with M16 threaded stud as standard, if you require different threads we can customize in 5-7 business days.

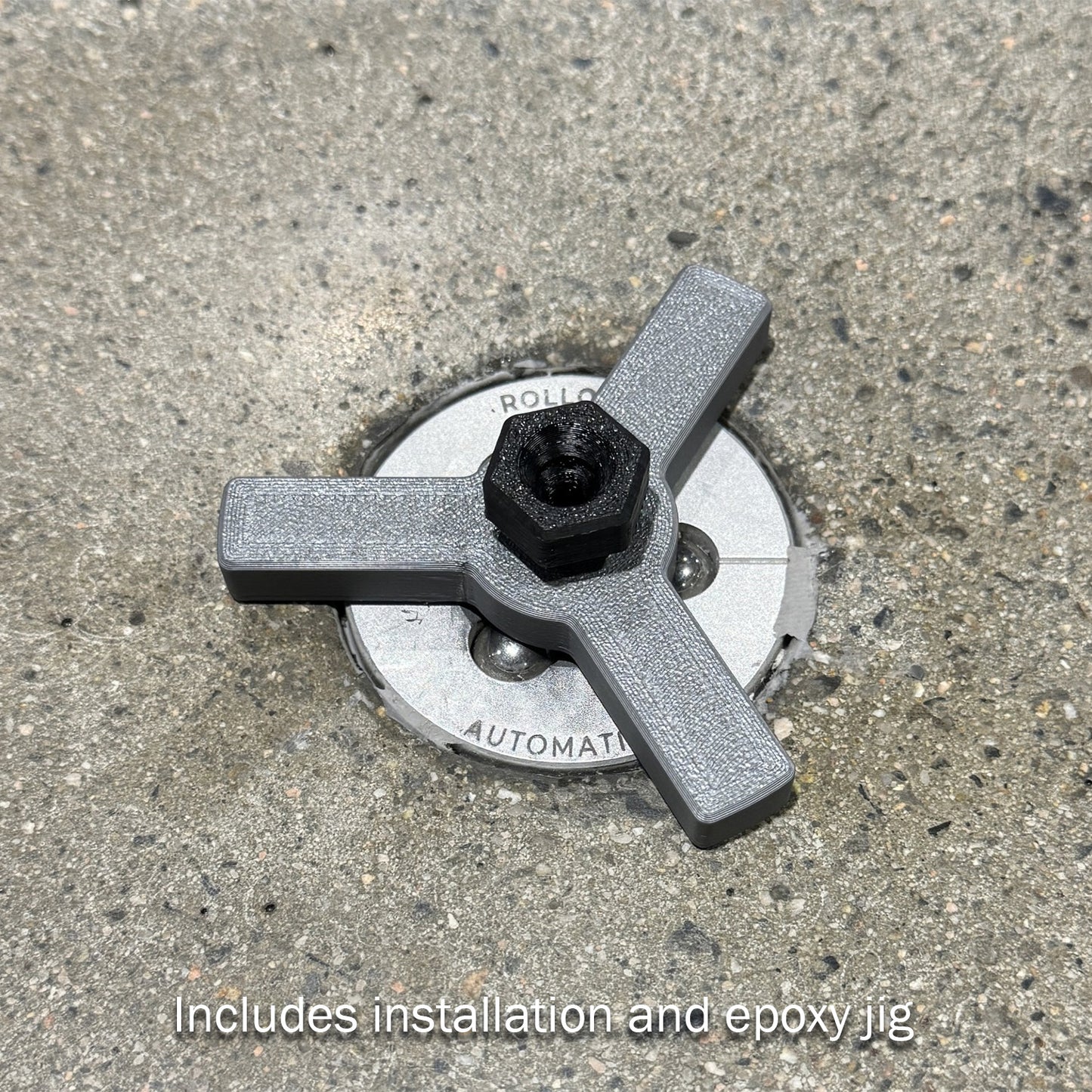

Install by drilling with 2-5/8 (or 70 mm) core drill and use included installation jig to backfill with epoxy.
